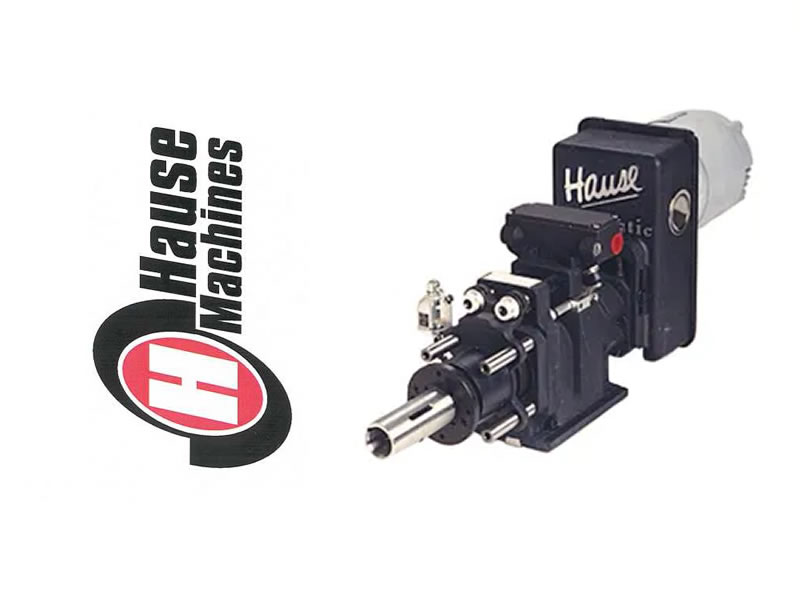

Leadscrew Tapping Units

Set for the pitch required, these quill-style units are specifically made for tapping and threading with optional yoke operators, etc. they are completely customizable for your unique application. Whether an off-the-shelf unit or a fully custom unit, bring us your challenge and we’ll help provide a solution. With 1000’s of adaptations and sub-assemblies available.

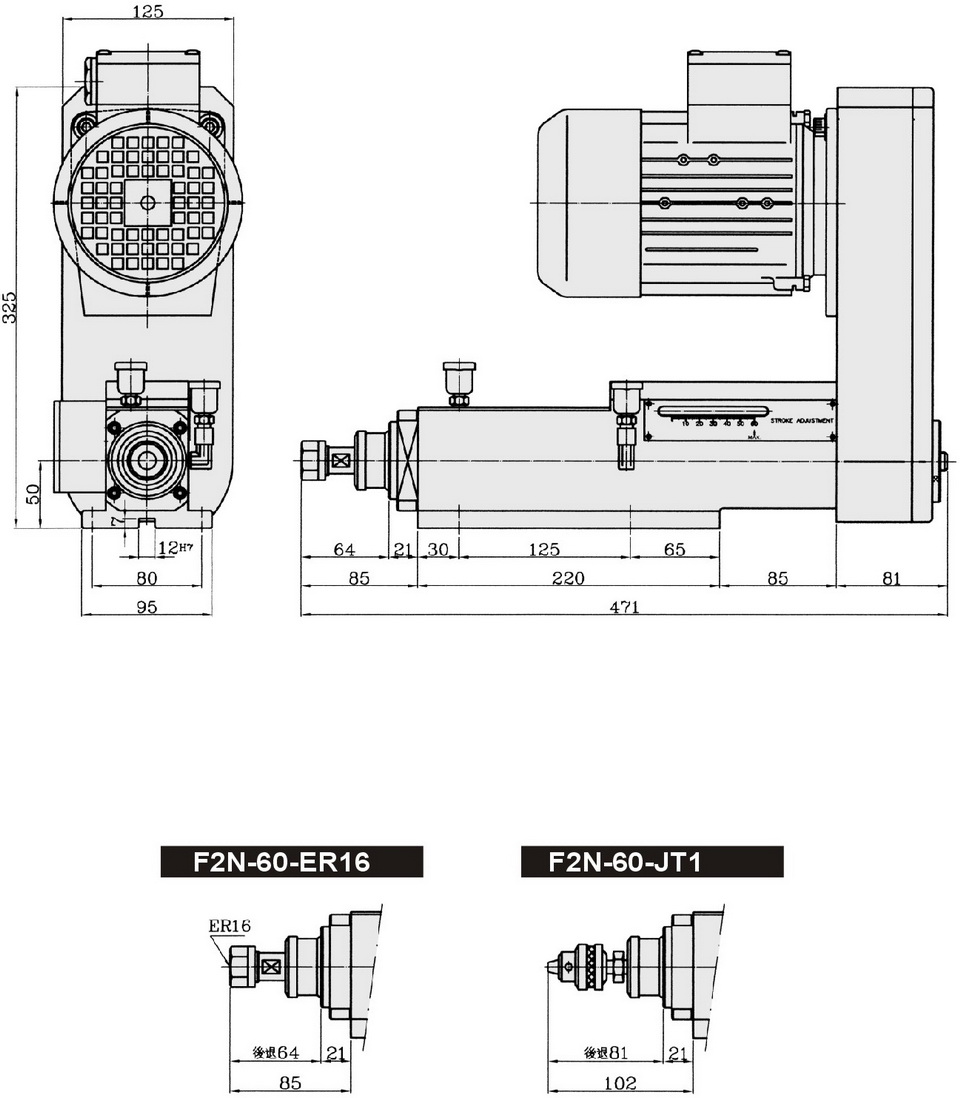

F2N-60 pic

Model F2N-60

60mm stroke, all leadscrew

  • Capacity M6 (mild steel)
  • ER16 or JT1 Spindle
  • .25mm – 1.25mm TPI
  • Max 1800 rpm

Download the files to your computer and open them with the appropriate software.

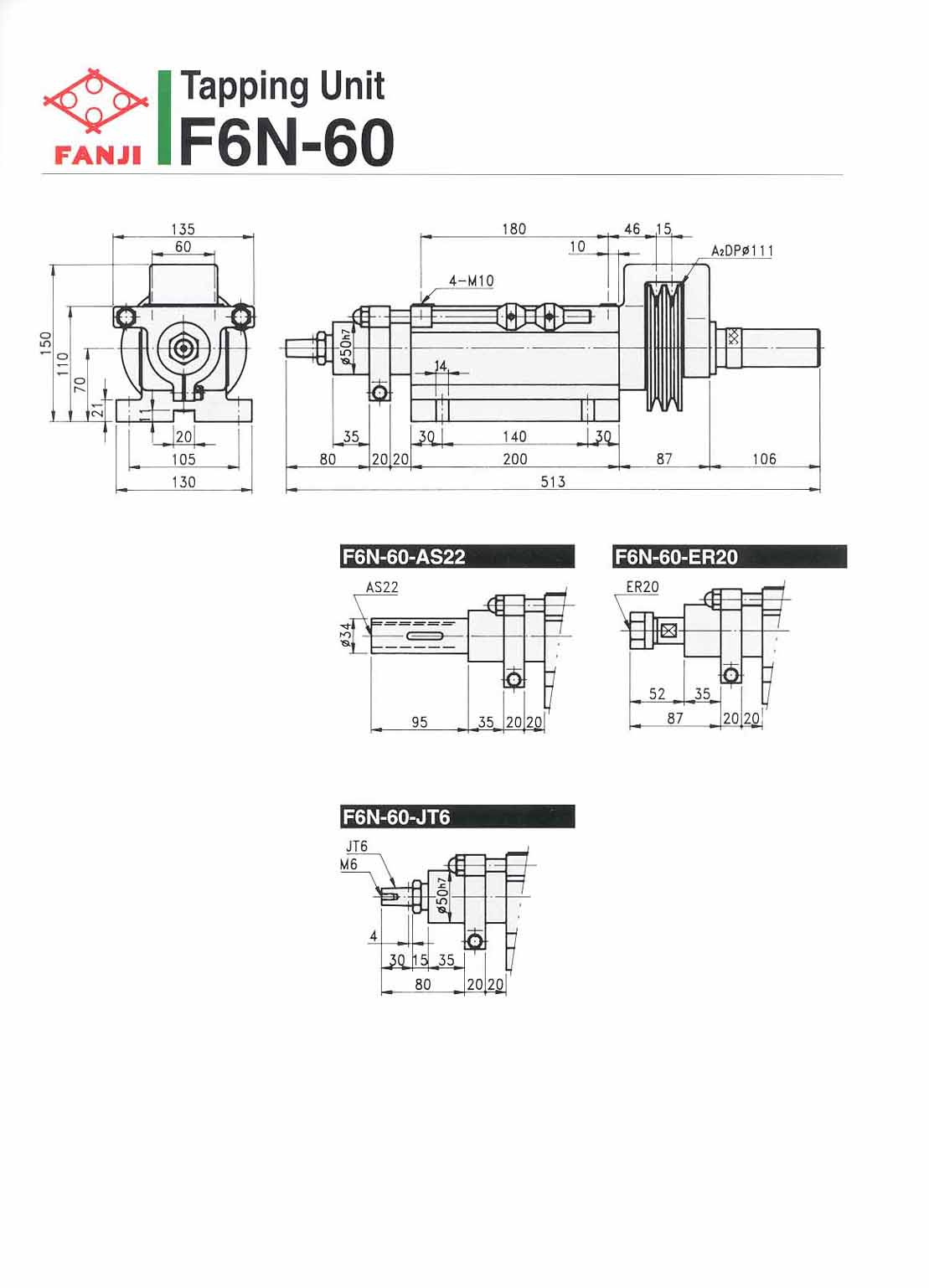

F6N-60 Pic

Model F6N-60

60mm stroke, all leadscrew

  • Capacity M12 (mild steel)
  • .4mm – 2.0mm Thread Pitch
  • Max 1800 rpm

Download the files to your computer and open them with the appropriate software.

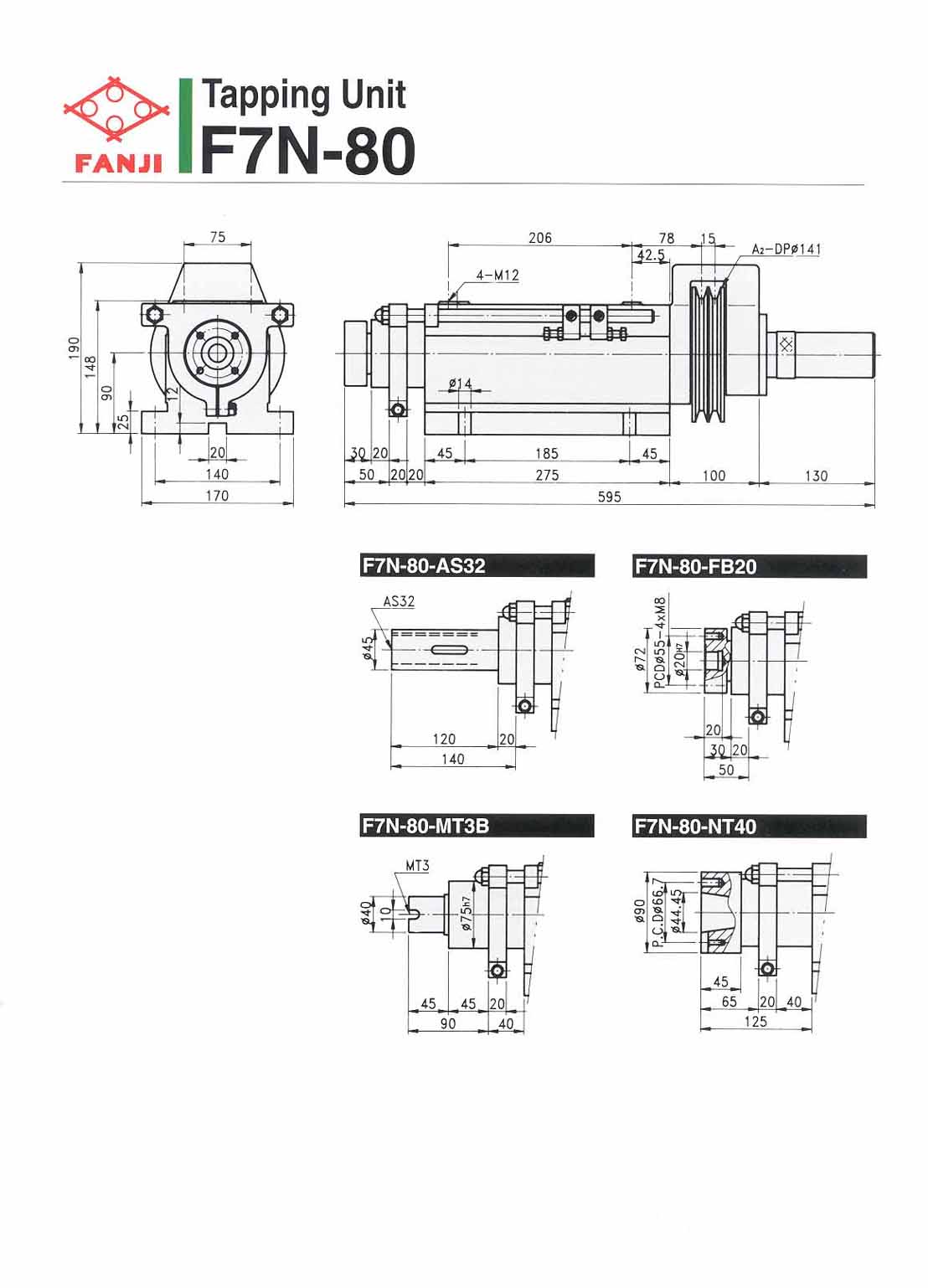

F7N-80 Pic

Model F7N-80

80mm stroke, all leadscrew

  • Capacity M30 (mild steel)
  • .7mm – 2.5mm Thread Pitch
  • Max 1800 rpm

Download the files to your computer and open them with the appropriate software.

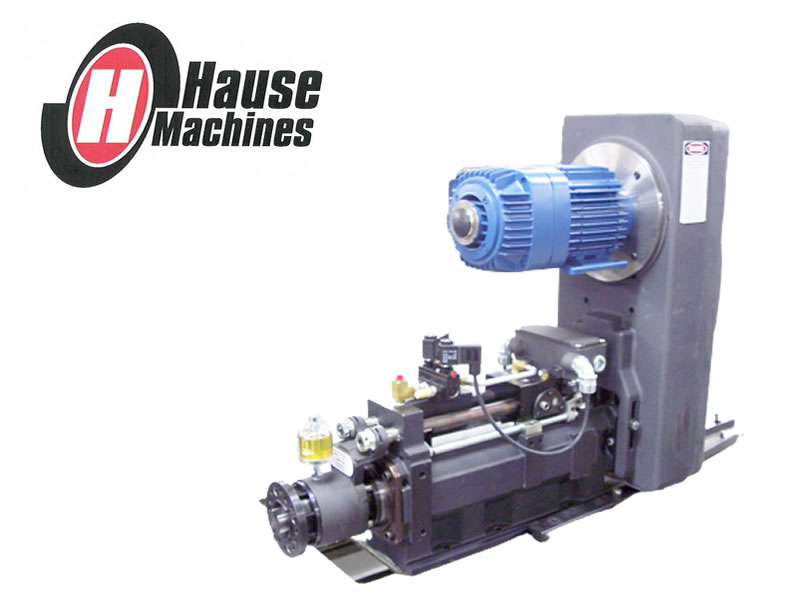

Leadscrew Tapping Unit

Model 3400

Air-rapid and leadscrew, 4″ total stroke.

  • 1 3/8” and 1 ½” standard spindles, others available
  • 4” total stroke, ½” to 3 7/8” air rapid, 1/8” to 2” leadscrew stroke
  • Rapids of 50 – 600 in per minute.
  • Taps or threads 48 to 7 straight TPI and up to 11 ½ taper TPI
  • Yoke operators available.
  • Reversing motors up to 5 HP
  • Repeats to 1/8 turn at 1000 RPM

Download the files to your computer and open them with the appropriate software.

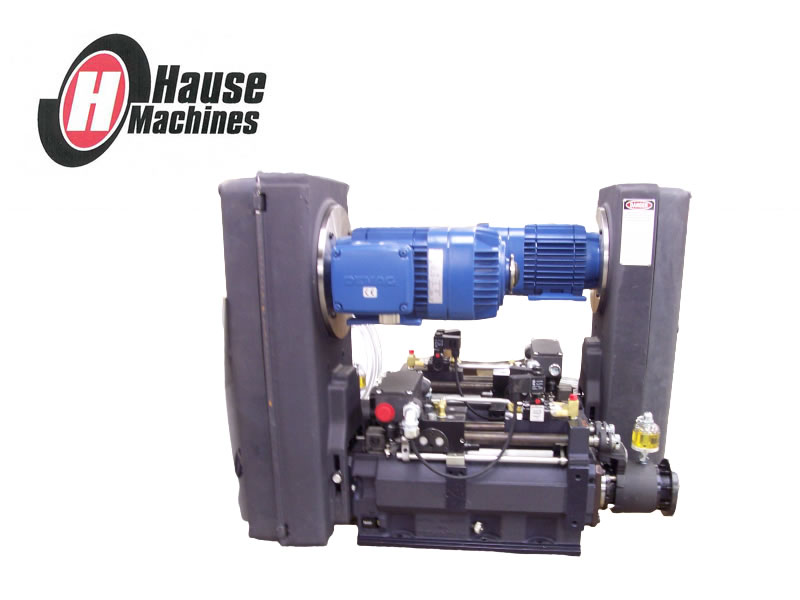

Leadscrew Tapping Unit Model 3600

Model 3600

Air-rapid and leadscrew, 6″ total stroke

  • 1 3/8” and 1 ½” standard spindles, others available
  • 4” total stroke, ½” to 5 7/8” air rapid, 1/8” to 2” leadscrew stroke
  • Rapids of 50 – 600 in per minute.
  • Taps or threads 48 to 7 straight TPI and up to 11 ½ taper TPI
  • Yoke operators available.
  • Reversing motors up to 5 HP
  • Repeats to 1/8 turn at 1000 RPM
Leadscrew Tapping Unit Model 3600

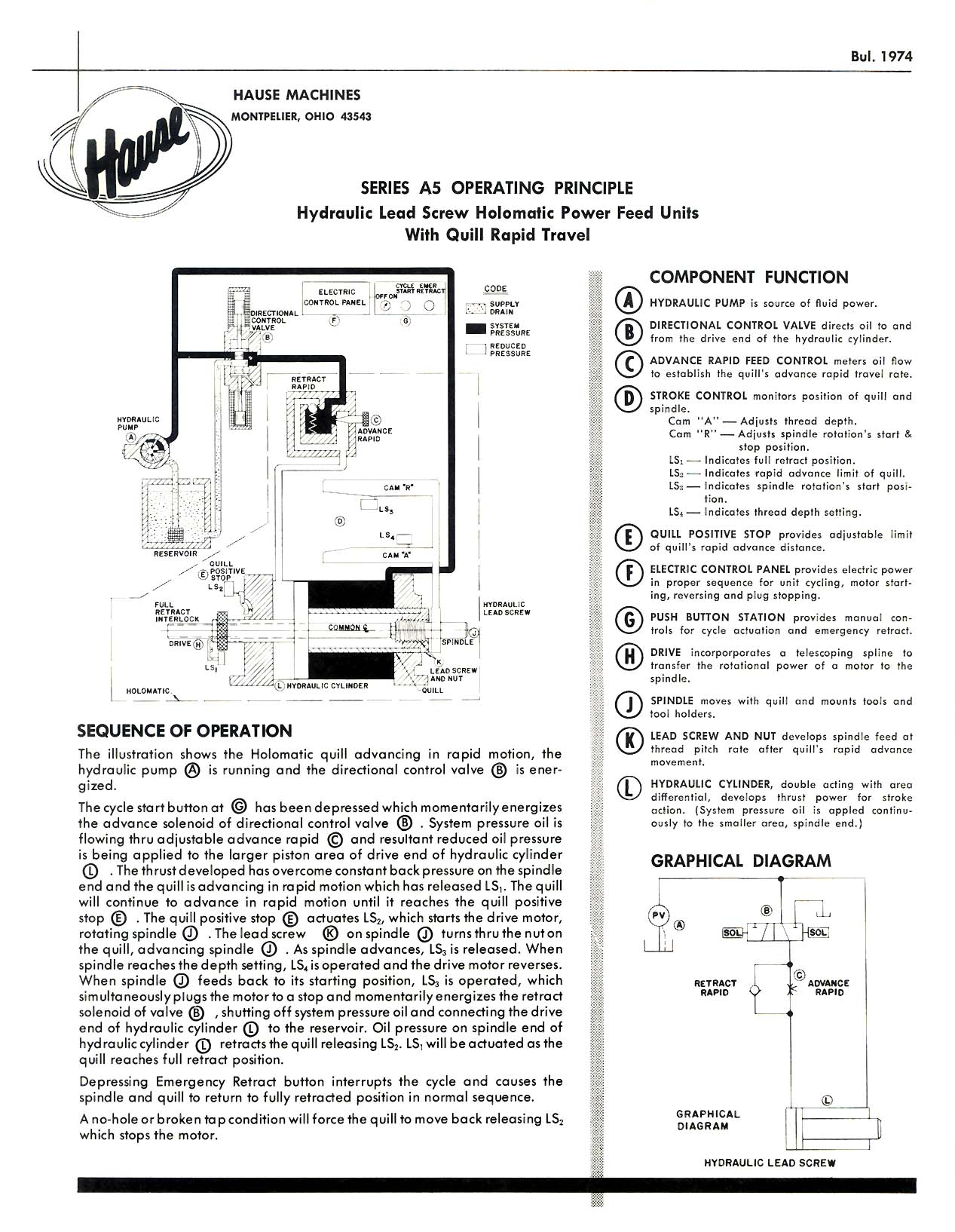

Model 5400

Hydraulic-rapid and leadscrew, 4″ total stroke

  • 1 3/8” and 1 ½” standard spindles, others available
  • 4” total stroke, ½” to 3 7/8” hyd. rapid, 1/8” to 2” leadscrew stroke
  • Rapids of 50 – 600 in per minute.
  • Taps or threads 48 to 7 straight TPI and up to 11 ½ taper TPI
  • Yoke operators available.
  • Reversing motors up to 5 HP
  • Repeats to 1/8 turn at 1000 RPM

Download the files to your computer and open them with the appropriate software.

Leadscrew Tapping Unit Model 3600

Model 5600

Hydraulic-rapid and leadscrew, 6″ total stroke

  • 1 3/8” and 1 ½” standard spindles, others available
  • 6” total stroke, ½” to 5 7/8” hyd. rapid, 1/8” to 2” leadscrew stroke
  • Rapids of 50 – 600 in per minute.
  • Taps or threads 48 to 7 straight TPI and up to 11 ½ taper TPI
  • Yoke operators available.
  • Reversing motors up to 5 HP
  • Repeats to 1/8 turn at 1000 RPM

Download the files to your computer and open them with the appropriate software.
