Machine Systems

882H Draw Tite Vertical Drill

Vertical machines

Vertical machines are in essence really well built, automatic drill presses.  Typically, a single operation or the basis for building your own machine. The unit could be a drill, reamer, tapping, servo, or could be fitted with a multiple spindle head. Fixtured or not.

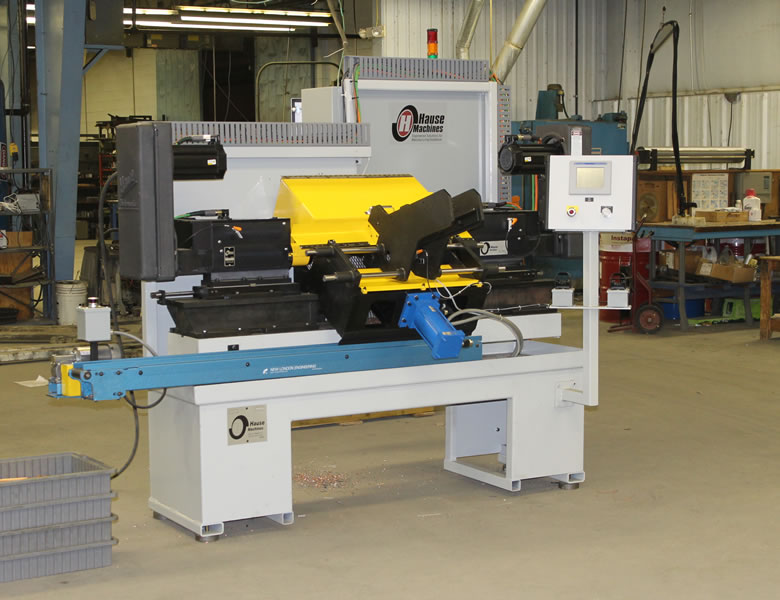

Double-end-machine

Horizontal & Double-End Machines

Double-end machines are great for working both ends of a shaft, pipe nipples, door hinges, etc. Fully tooled with chute feed or a “basic” machine to build your own.  We have several pre-designed systems or we can work with you the have a complete custom machine built for your process.

858H Trunnion Machine Photoe

Trunnion Machines

They are like multiple double-end machines in one.  Large trunnions are like the smaller ones with more machining spindles.  They are great for machining multiple operations on both ends of a shaft, turnbuckles, drive yokes, etc. Some of these include milling stations, along with the end working stations.  Fully tooled with chute feed, robotic load, integrated with a bowl feeder or operator load.

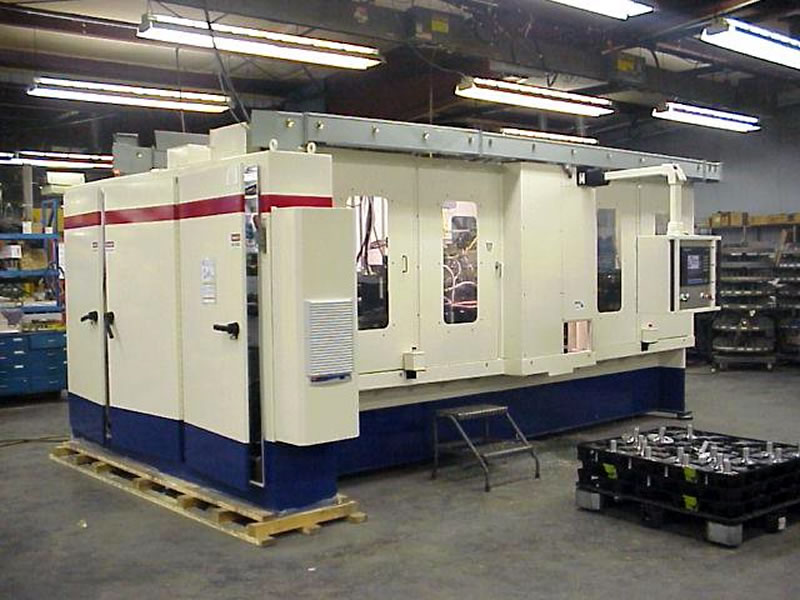

Gantry Machine

Gantry Machines

Gantry machines use multiple machining stations but use an overhead arm to move the parts along through the machine.  The arm can often pick parts from a conveyor, move them through the machine, and place them back on an exit conveyor.  They allow machining from the front and back of the part.  Brake Rotor drilling / reaming are a good example of gantry machines with multiple spindle heads incorporated.

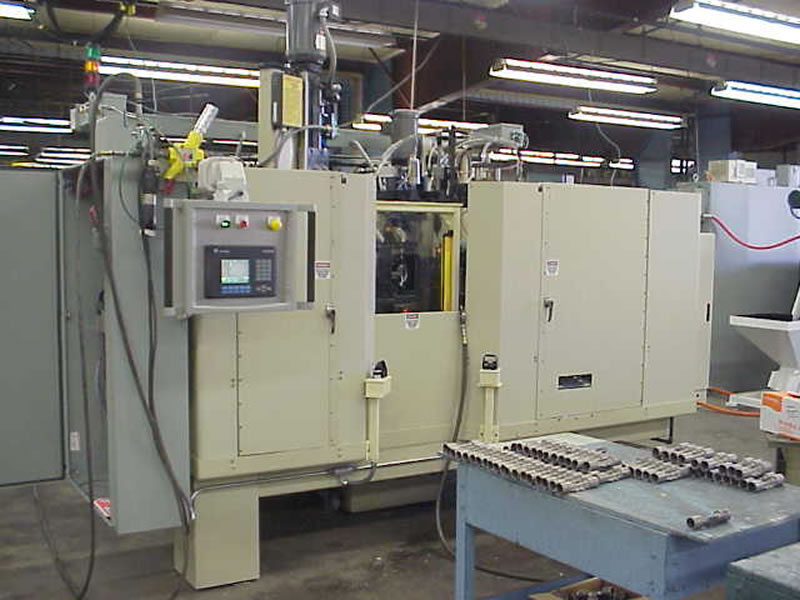

Dial Machine

Dial Machines

Dial machines use multiple machining stations for high-volume machining of a part. Machining operations can be vertical (on columns), horizontal (on risers) or at almost any angle required to complete the part.  We incorporate multiple spindle heads, 3-axis units, slides, spindles, and/or other special machining components.

Dial Machine

Integrated Accessories

 Robots, Washers, Bowl Feeders, Conveyors, Part markers, Part Measuring systems, Thread Checkers, Vision Systems, and other “non-machining” accessories are often incorporated into our systems providing our customers complete turn-key cells.

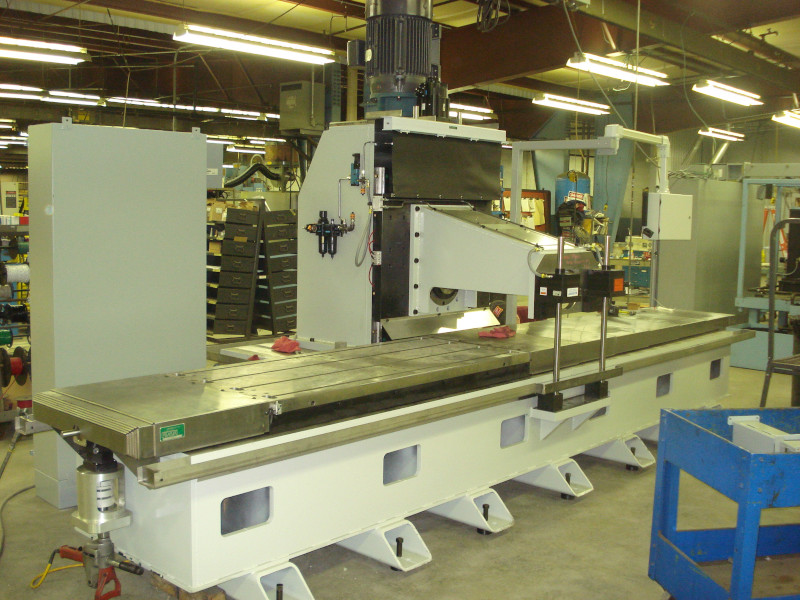

110H Mill

Everything Else

 Truly custom machines.  These unique machines don’t fall into any other category.
