Horizontal & Double-end Machines

Hause has designed and built hundreds of double-end machines. We often start with our “Basic” Single End or Double-end, an untooled version with no fixture, and modify to suit.

We also offer fully custom double-end machines. Needing to prep shafts for a lathe? Pipe nipples, tubing, or face and center? Door hinges, rod ends are all manufactured using these machines. Start with a “basic” untooled machine and add your own fixture or have Hause design one just for your product.

The machining unit could be servo, dual servo, hydraulic, air, or leadscrew for tapping or die head threading.

Basic Horizontals: Servo, Hydraulic, Air-Hydraulic, Leadscrew, and Pneumatic

Everything you need to build your own. Two machining units have a 13 x 72″ base, a coolant system, a hydraulic system (optional), and a control package with a basic manual and automatic controls of the unit and fixture. Add your fixture and tools and you are ready to go.

  • 13 x 48″ or 13″ x 72″ fixture mounting area
  • 3/8″ pneumatic FRL and (2) valves
  • 20-gallon coolant system
  • Allen Bradley Micrologix PLC
  • 6″ HMI.

147H, 159H, 168H, 833H and 897H Chute-fed Double-end Drilling, Facing, or Threading Machines

We’ve solved this many times.  Double-ended threading machines for making pipe nipples, water pipe, gas and oil pipe, sprayer tubes, shock absorber shafts, etc.  Double-end ID / OD and face machines for tubes. For other custom machine needs, contact Hause Machines

  • (2) Hause 6″ spindles
  • Yoke operated Die heads
  • Pneumatic or Hydraulic Clamp
  • Auto-load / Unload
  • 80 gallon coolant
  • Threads both ends of pipe while reaming / deburring

138H, 821H, 854H, 859H and 963H Chute-fed Chamfering, Facing, or Threading Machines

We’ve solved this many times.  Double-ended tube chamfering machines for cleaning up after saw cutting or any other burr making process.   Double-end ID / OD and face machines for tubes. For other custom machine needs, contact Hause Machines

  • (2) Hause 8404 Ballscrew units
  • Custom ID / OD chamfer heads
  • Pneumatic or Hydraulic Clamp
  • Auto-load / Unload
  • 80 gallon coolant

130H, 131H, 136H, 137H, 141H, 149H, 150H, 169H Double-End Centering Machine

Face and center a forging or a saw cut bar to prep it for a lathe. Or center, face and OD chamfer. For other custom machine needs, contact Hause Machines

  • 24″ ballscrew slide for length adjustment.
  • Custom Fixturing based on part specifications.
  • Up to 15 HP AC Spindle motor.
  • Allen Bradley PLC and HMI
  • Face and center drive yokes, transmission shafts, or other Automotive components.
  • 80-gallon coolant system with magnetic conveyor.

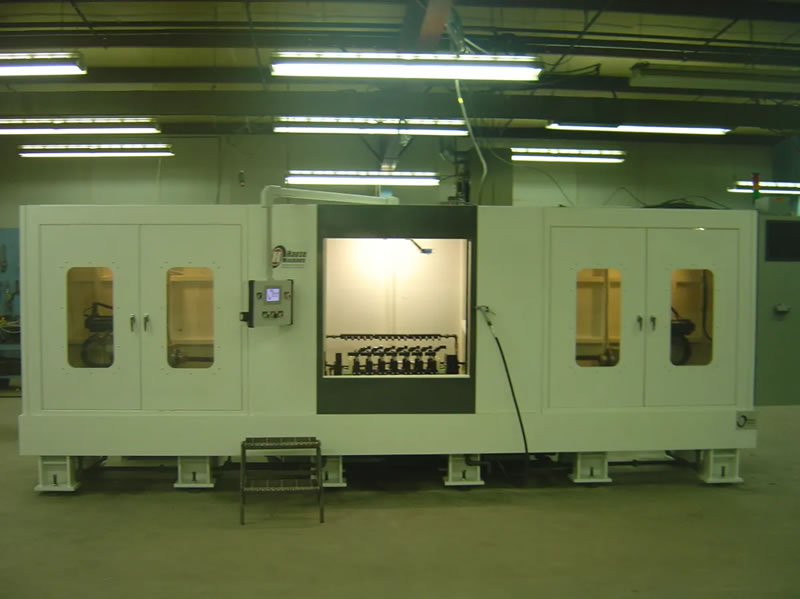

Double End Boring Machine

998H Double-End Boring Machine

Larger 24″ slides and boring spindles on each end. This machine was used for engine heads. A similar machine drills out bull-dozer track for coal mining equipment. Many other parts could use this type of arrangement. For other custom machine needs, contact Hause Machines

  • 24″ ballscrew slides with 6″ block spindles.
  • Custom Fixturing based on part specifications.
  • Up to 15 HP AC Spindle motor.
  • Allen Bradley PLC and HMI
  • Coal mining equipment, automotive parts, Heavy equipment, or other components.
  • 200-gallon coolant system with magnetic conveyor and filter system.
  • High pressure thru the spindle coolant.
141H Machine Pic

141H Drill and Tap Spider or U-joint

Servo units all the way around, this machine drills and counterbores the grease ports, and drills and pipe taps the Zerk Fitting hole.   For other custom machine needs, contact Hause Machines

  • (6) Servo Ballscrew drilling and tapping units.
  • Broken Tool Detection
  • Custom Fixturing based on part specifications.
  • Allen Bradley PLC and HMI
  • Automotive U-joit also known as a spider.
  • 100-gallon coolant system with magnetic conveyor and filter system.
  • High pressure thru the spindle coolant.
