Servo Ballscrew Units

Servo ballscrew units. Programmability. Make off-sets for tool depths, rpm changes from the screen. Use them for drilling or tapping. AC motor for the spindle or servo. You specify the motor being used, we install the plates and pulleys accordingly. Mount in any direction. The most versatile units.

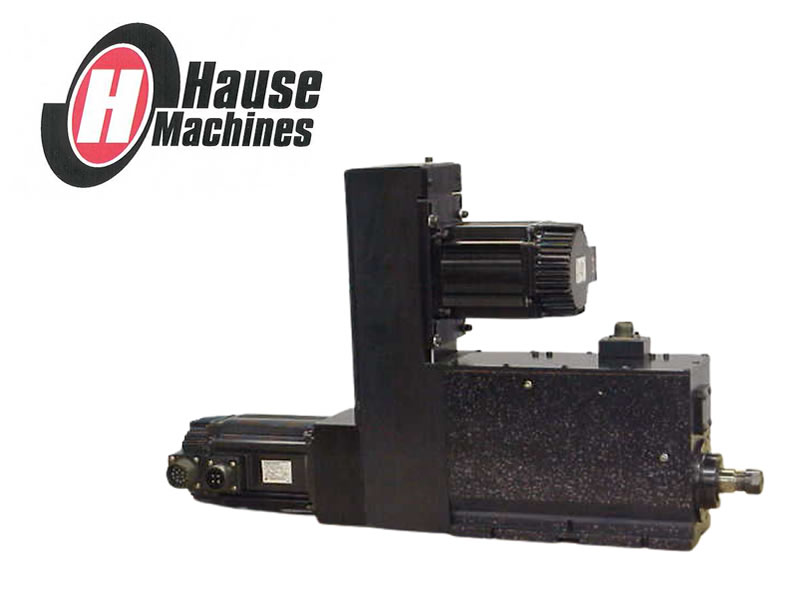

Quill Unit Servo Model 8301

Setup: 8301 with direct drive servo, 2 axis with ER Collet spindle

Model 8300

  • 3″ stroke
  • 2.375 quill diameter
  • 2.500″ center height
  • 600# thrust
  • 7200 rpm( STD.)
  • .01 to 200 ipm
  • 600 lb-in torque
  • Repeats to .0005″

Download the files to your computer and open them with the appropriate software.

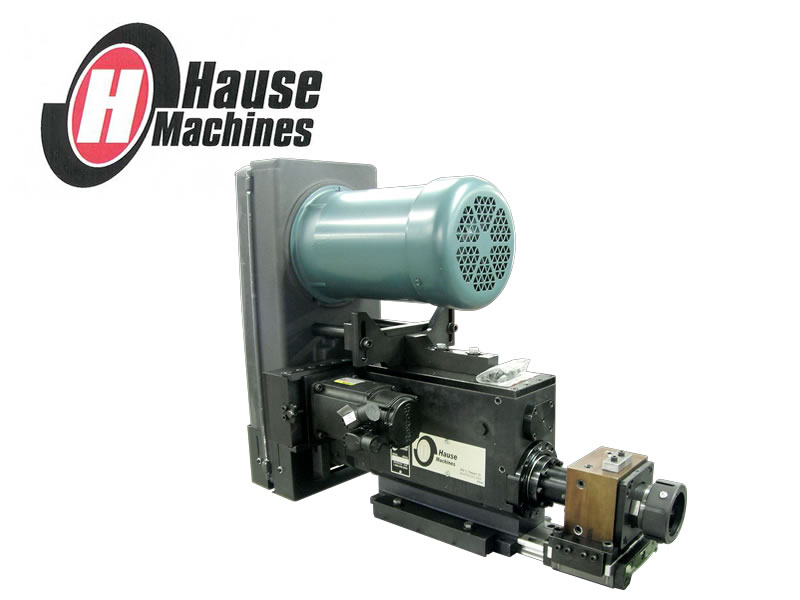

Quill Unit Servo 8400 Model

Setup: 8400 unit, sliding spindle support, 40 taper spindle, and overhead belt housing.

Model 8400

  • 4″ stroke
  • 1800# thrust
  • 680 lb-in torque (std.)
  • 1500 lb-in torque (optional high torque “HT”)
  • Ready for 12mm over-travel and home switches
  • Various spindle noses

Download the files to your computer and open them with the appropriate software.

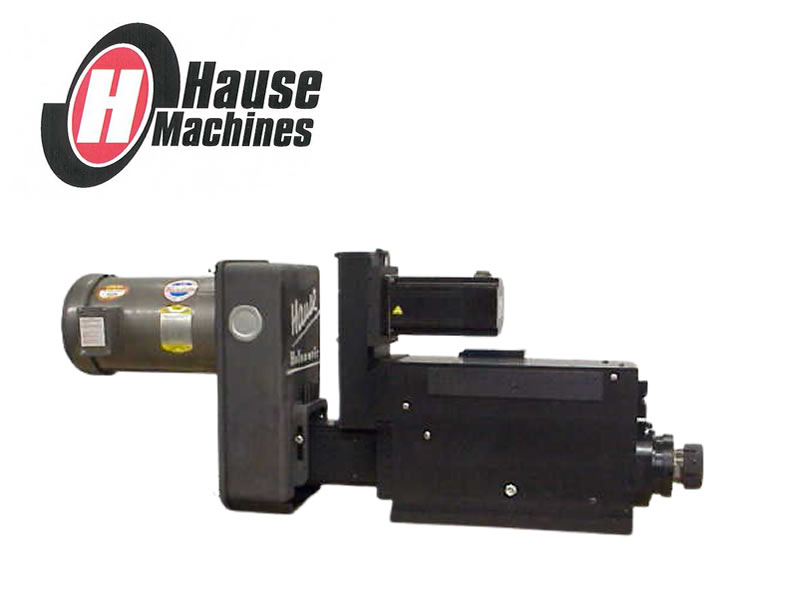

Quill Unit Servo 8600

Setup: 8600 unit with 40 taper spindle and extended belt housing

Model 8600

  • 6″ stroke, 1800# thrust
  • 680 lb-in torque (std.)
  • 1500 lb-in torque (optional high torque “HT”)
  • Ready for 12mm over-travel and home switches
  • Various belt / pulleys / motor arrangements
  • Various spindle noses, mount in any orientation

Download the files to your computer and open them with the appropriate software.

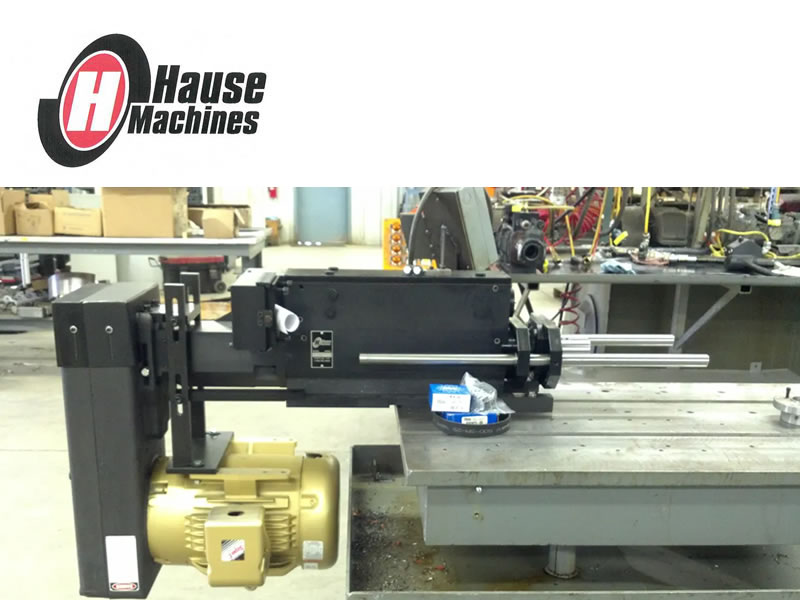

Servo Ball Screw Unit Model 8100

Setup: 8100 unit with guide bar support, overhead belthousing, and heavy motor support.

Model 8100

  • 10″ stroke
  • 1800# thrust
  • 680 lb-in torque (std.)
  • 1500 lb-in torque (optional high torque “HT”)
  • Ready for 12mm over-travel and home switches
  • Various spindle noses

Download the files to your computer and open them with the appropriate software.

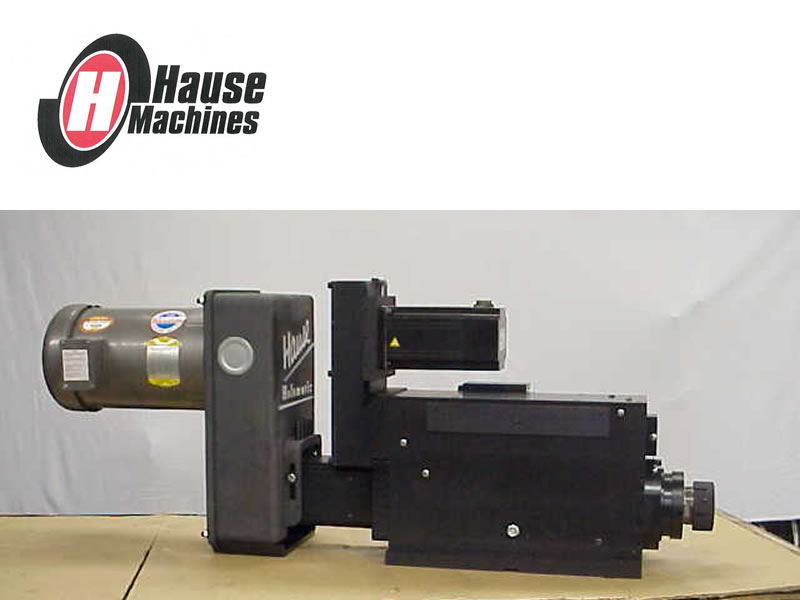

Ball Screw Unit Model 8700

Setup:

Model 8700

  • 7″ stroke, 4 1/2″ center height
  • 4500# thrust, 1 1/2″ steel drill capacity
  • 3500 lbs-in torque
  • Ready for 12mm over-travel and home switches
  • Various belt / pulleys / motor arrangements
  • Various spindle noses, mount in any orientation,

Download the files to your computer and open them with the appropriate software.

FD15S-150-480

Setup:

Model FD15S-150

  • 5.9” stroke, barrel mounted
  • 4500# thrust, 1 ½” steel drill capacity
  • 3500 lbs-in torque, switches included
  • 3500 rpm max, various spindle noses available.

Download the files to your computer and open them with the appropriate software.
