Pneumatic Units

Simple, in-expensive, easy to use.

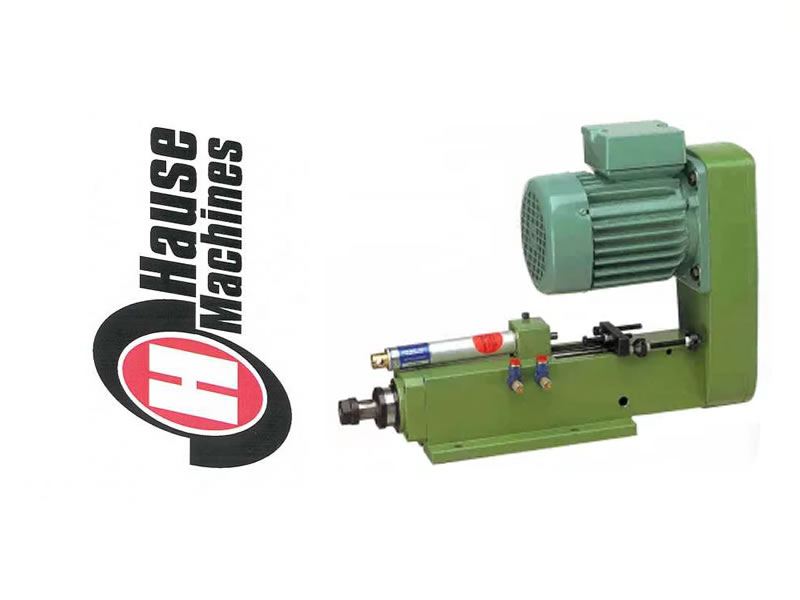

Pneumatic Unit Model FD3-55

Model FD3-55

NEED DESCRIPTION

  • Pneumatic Pressure: 4~6 kg/cm2
  • Drilling Capacity: Ø5(mild steel)5kg/cm2
  • Chuck Type: ER16-Ø10,JT1- Ø6.5,JT2- Ø10
  • Power: 0.37kw-2P,4P,220/380V
  • Max. Revolution/Minute: 6,000 rpm
  • Weight: 19kg
  • Overall Stroke: 55mm
  • Drilling Stroke: 25mm or 50mm
  • Cylinder Diameter: Ø50
  • Cylinder Area: Forward 15.8cm2, Backward 7.1cm2
  • Thrust Force: 79kg(5kg/cm2)
  • Transmission Pulley: V-Shape,189J,201J

Download the files to your computer and open them with the appropriate software.

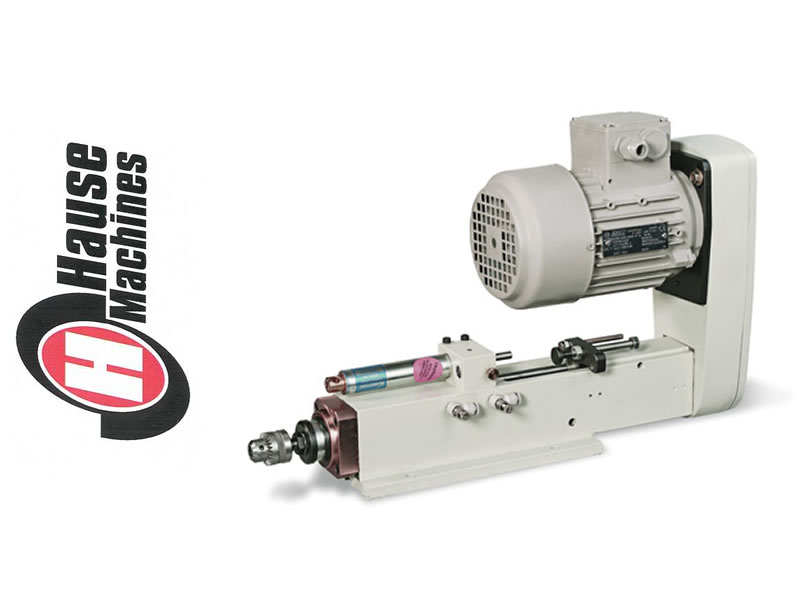

Model FD3-80

Model FD3-80

NEED DESCRIPTION

  • Pneumatic Pressure: 4~6 kg/cm2
  • Drilling Capacity: Ø5(mild steel)5kg/cm2
  • Chuck Type: ER16-Ø10,JT1- Ø6.5,JT2- Ø10
  • Power: 0.37kw-2P,4P,220/380V
  • Max. Revolution/Minute: 6,000 rpm
  • Weight: 22kg
  • Overall Stroke: 80mm
  • Drilling Stroke: 25mm or 50mm
  • Cylinder Diameter: Ø50
  • Cylinder Area: Forward 15.8cm2, Backward 7.1cm2
  • Thrust Force: 79kg(5kg/cm2)
  • Transmission Pulley: V-Shape,189J,201J

Download the files to your computer and open them with the appropriate software.

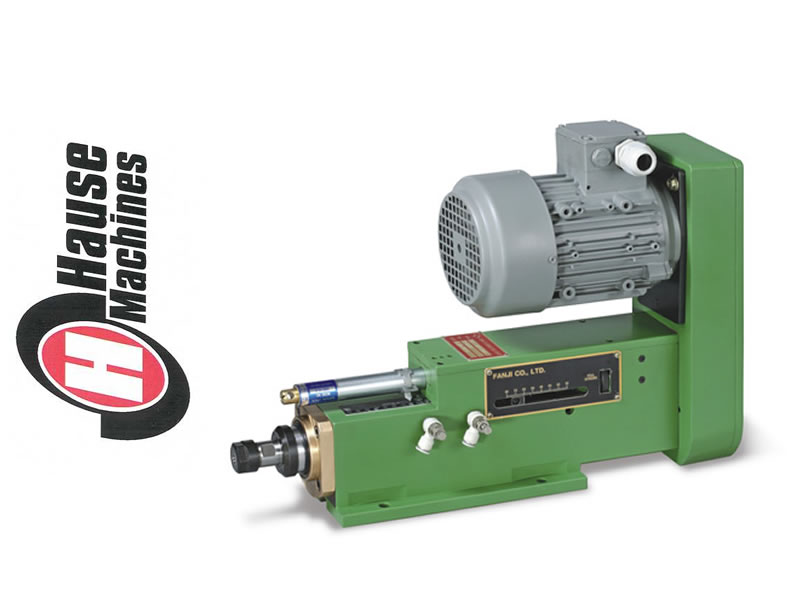

Model FD55-80

Model FD55-80

NEED DESCRIPTION

  • Pneumatic Pressure: 5~6 kg/cm2
  • Drilling Capacity: Ø8(mild steel)5kg/cm2
  • Chuck Type: ER20-Ø13,JT6- Ø13
  • Power: 0.37kw-2P,4P 0.75kw-2P,4P 220/380V
  • Max. Revolution/Minute: 5,000 rpm
  • Weight: 38kg
  • Overall Stroke: 80mm
  • Drilling Stroke: 25mm or 50mm
  • Cylinder Diameter: Ø63
  • Cylinder Area: Forward24.1cm2,Backward11.6cm2
  • Thrust Force: 120kg(5kg/cm2)
  • Transmission Pulley: V-Shape,201J,220J

Download the files to your computer and open them with the appropriate software.
