Hydraulic Units

The quill-style units are specifically made for end-working tools. Drills, reamers, taps, hones, etc., but are completely customizable for your unique application. Whether an off-the-shelf unit or a fully custom unit, bring us your challenge and we’ll help provide a solution. With 1000’s of adaptations and sub-assemblies available.

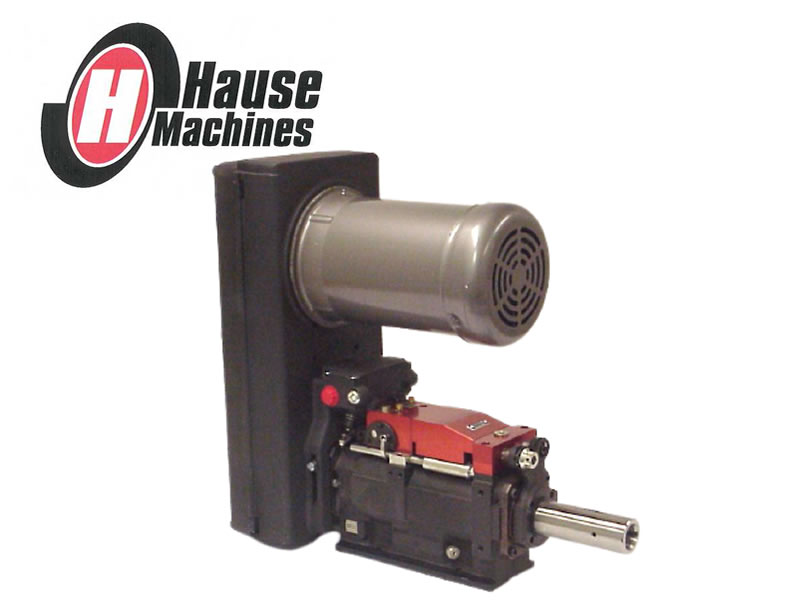

Hydraulic 6494

Model 6400 Holomatic



Feed rate: Adv. 1/4”/min. to 75”/min., Ret. 1/4”/min. to 60”/min.

Rapid travel: 190 I.P.M. approx.

  • Concentric construction.
  • Pressure compensating feed valves
  • Various spindle and drive choices.
  • Other options available.
Hydraulic 6494

Model 6600 Holomatic



Feed rate: Adv. 1/4”/min. to 75”/min., Ret. 1/4”/min. to 60”/min.

Rapid travel: 190 I.P.M. approx.

  • Concentric construction.
  • Pressure compensating feed valves
  • Various spindle and drive choices.
  • Other options available.

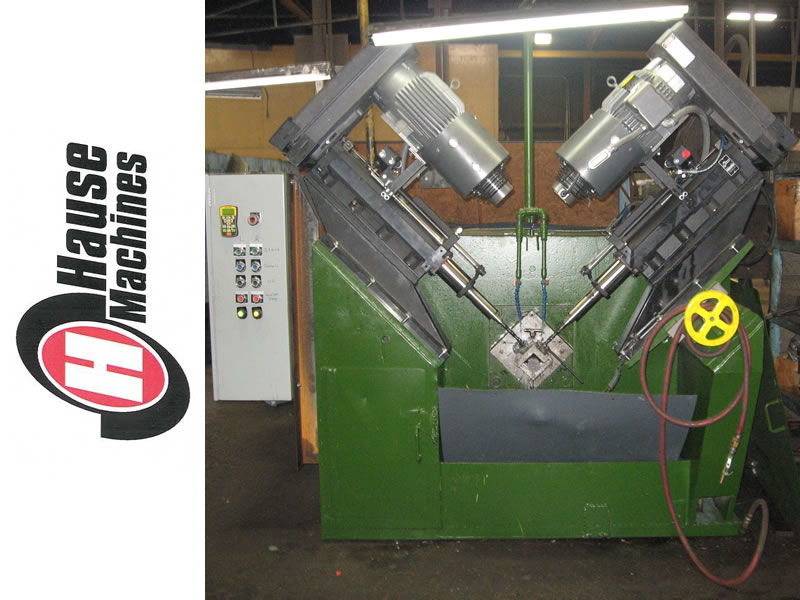

Hydraulic Model 6100 Holomatic

Model 6100 Holomatic



Feed rate: Adv. 1/4”/min. to 75”/min., Ret. 1/4”/min. to 60”/min.
Rapid travel: 190 I.P.M. approx.

  • Concentric construction.
  • Pressure compensating feed valves
  • Various spindle and drive choices.
  • Other options available.

Download the files to your computer and open them with the appropriate software.

6194-6195-Basic.DWG

6194-A6.dwg

6195-A6.dwg

6198-A6.dwg

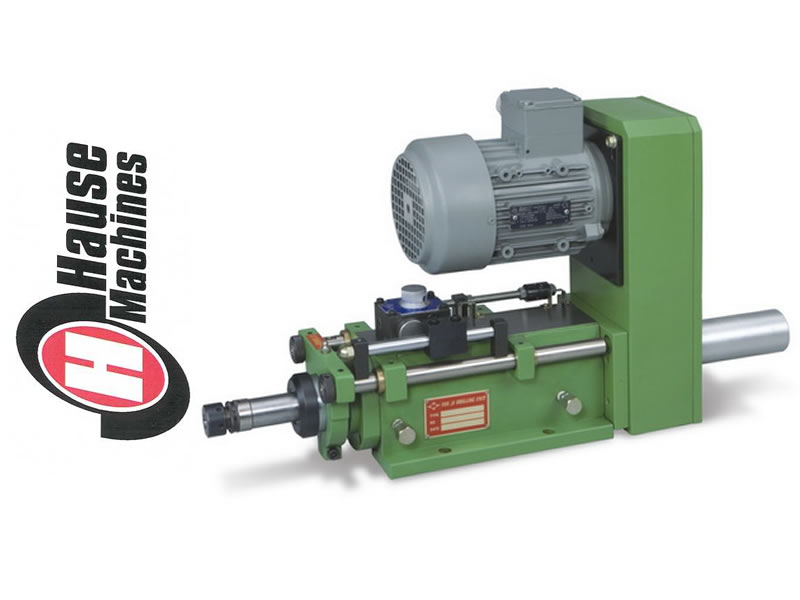

Hydraulic Model FD62-100

Model FD62-100

  • Hydraulic Pressure: 350 psi
  • Max. Revolution/Minute: 3,800 rpm
  • Weight: 145#
  • Overall Stroke: 100mm
  • Cylinder Diameter: Ø 80mm
  • Cylinder Area: Forward 43.2cm2 , Backward 30.6cm2
  • Thrust Force: 2300# / 1680#
  • Power: 0.75kw-2P or 4P, 220V/380V

To view this file, download it to your computer and open it with AutoCAD compatible software.

FD65-100pg2
FD62-100-JT6.dwg
FD62-100-ER25.dwg
FD62-100-ER20.dwg
FD62-100-AS22.dwg
FD62-100-W-MSH.dwg

FD6-130 Pic

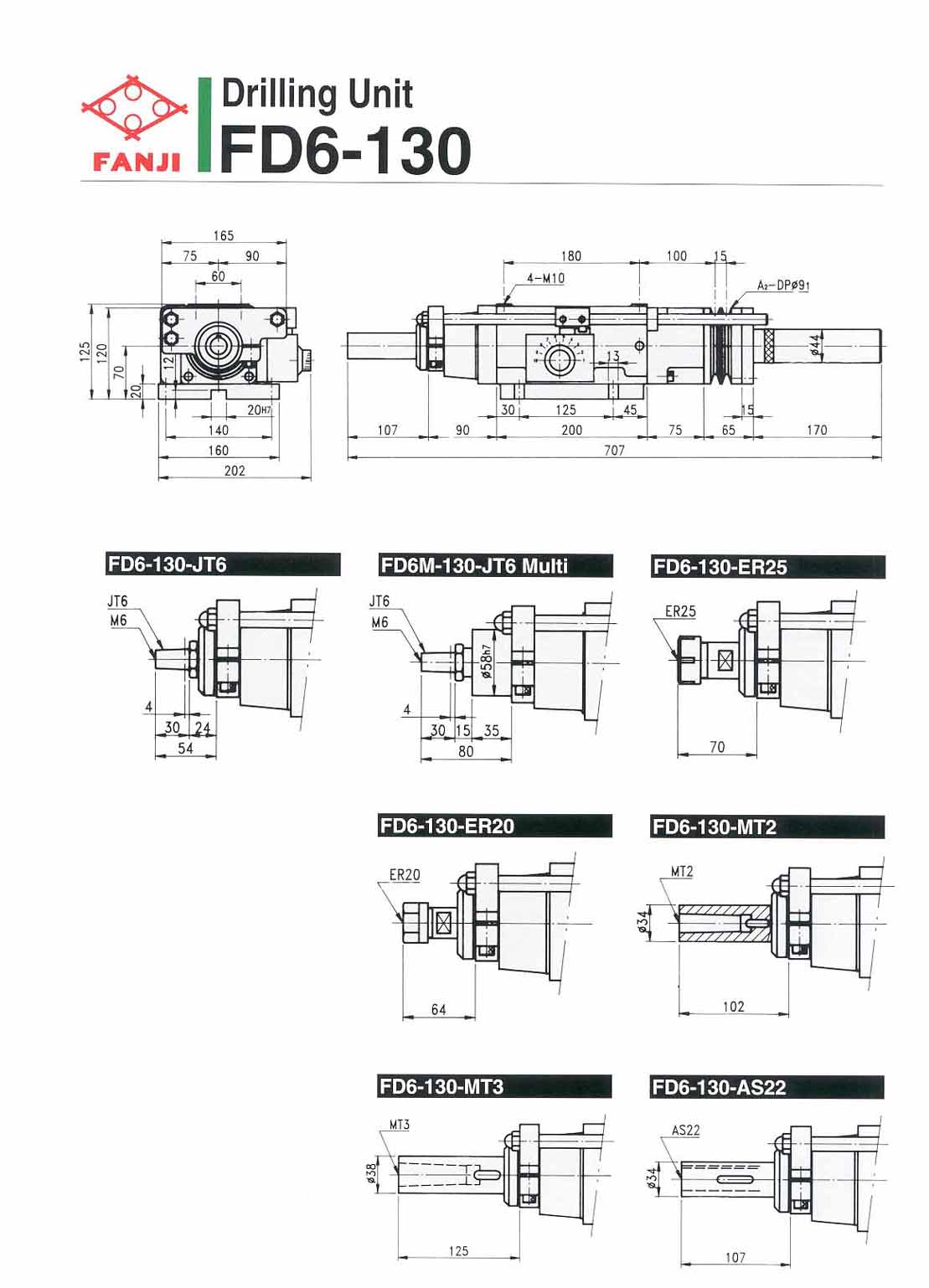

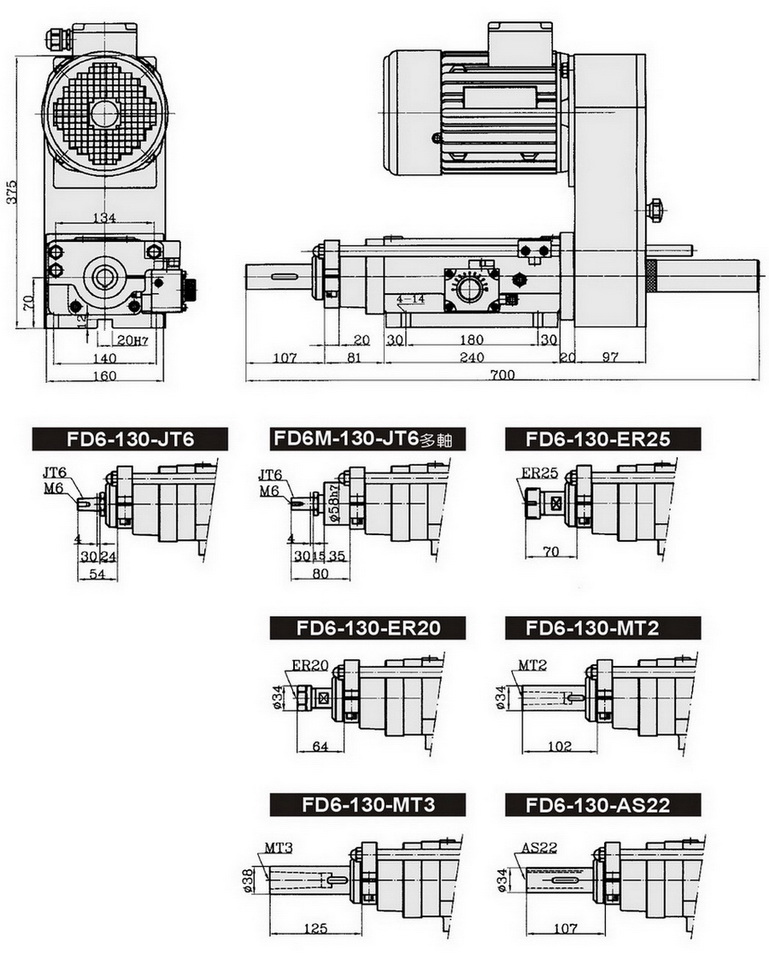

Model FD6-130

  • Hydraulic Pressure: 350 psi
  • Max. Revolution/Minute: 2000 rpm
  • Weight: 70#
  • Overall Stroke: 130mm
  • Cylinder Diameter: Ø 80
  • Cylinder Area: Forward 43.2cm2 , Backward 30.6cm2
  • Thrust Force: 2300# / 1680#

To view this file, download it to your computer and open it with AutoCAD compatible software.

 FD6-130-AS22-L.dwg

 FD6-130-AS22-R.dwg

 FD6-130-ER25-L.dwg

 FD6-130-ER25-R.dwg

 FD6-130-JT6-L.dwg

 FD6-130-JT6-R.dwg

 FD6-130-MT3-L.dwg

 FD6-130-MT3-R.dwg



FD7-150 pic

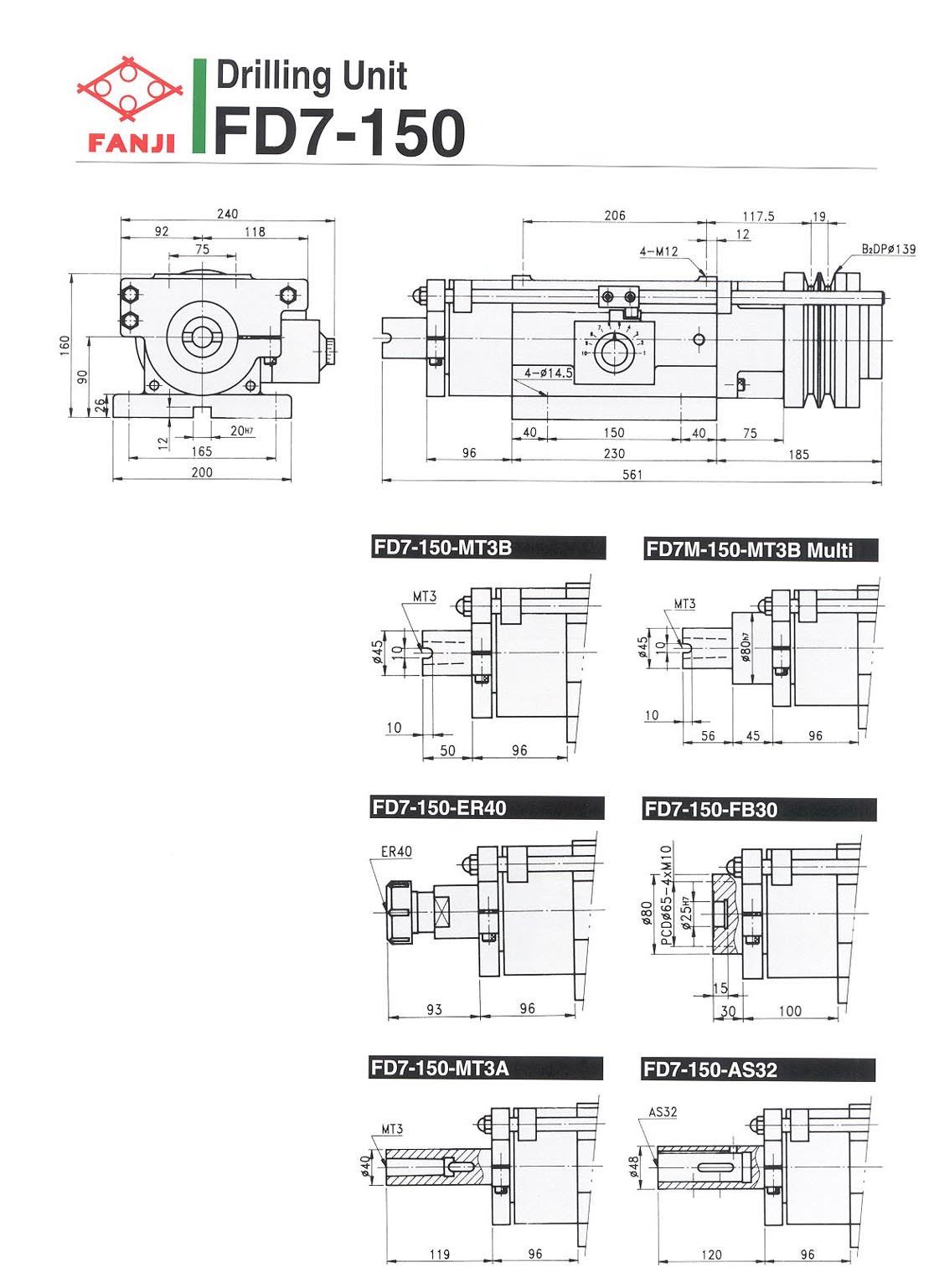

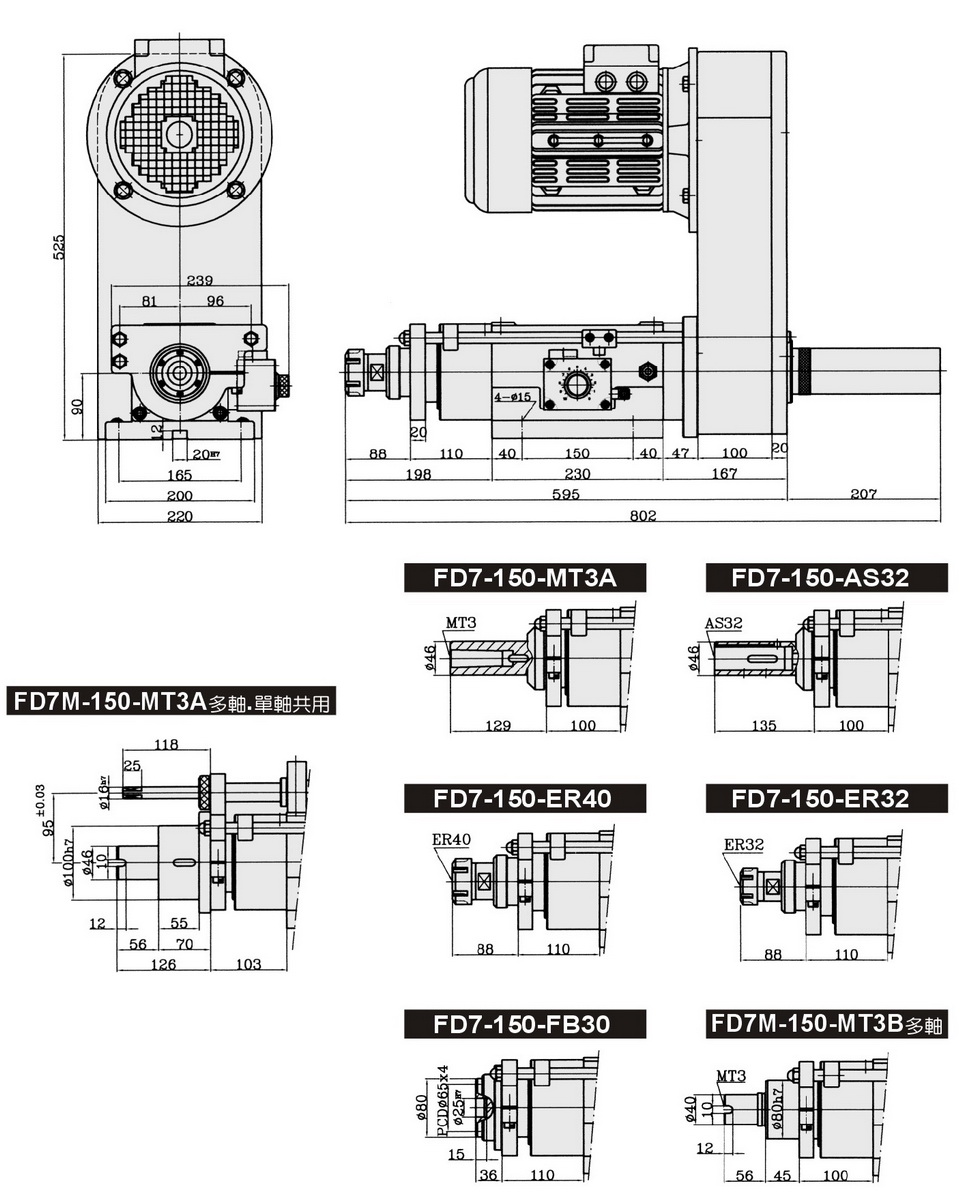

Model FD7-150

  • Hydraulic Pressure: 350 psi
  • Max. Revolution/Minute: 1500 rpm
  • Weight: 140#
  • Overall Stroke: 150mm
  • Cylinder Diameter: Ø 110mm
  • Cylinder Area: Forward 71.2cm2 , Backward 44.8cm2
  • Thrust Force: 3800# / 2400#

To view this file, download it to your computer and open it with AutoCAD compatible software.

FD7-150-AS32-L.dwg

FD7-150-AS32R

FD7-150-ER40L

FD7-150-ER40R

FD7-150-FB30L

FD7-150-FB30R

FD7-150-MT3AL

FD7-150-MT3AR

FD8-150 Pic

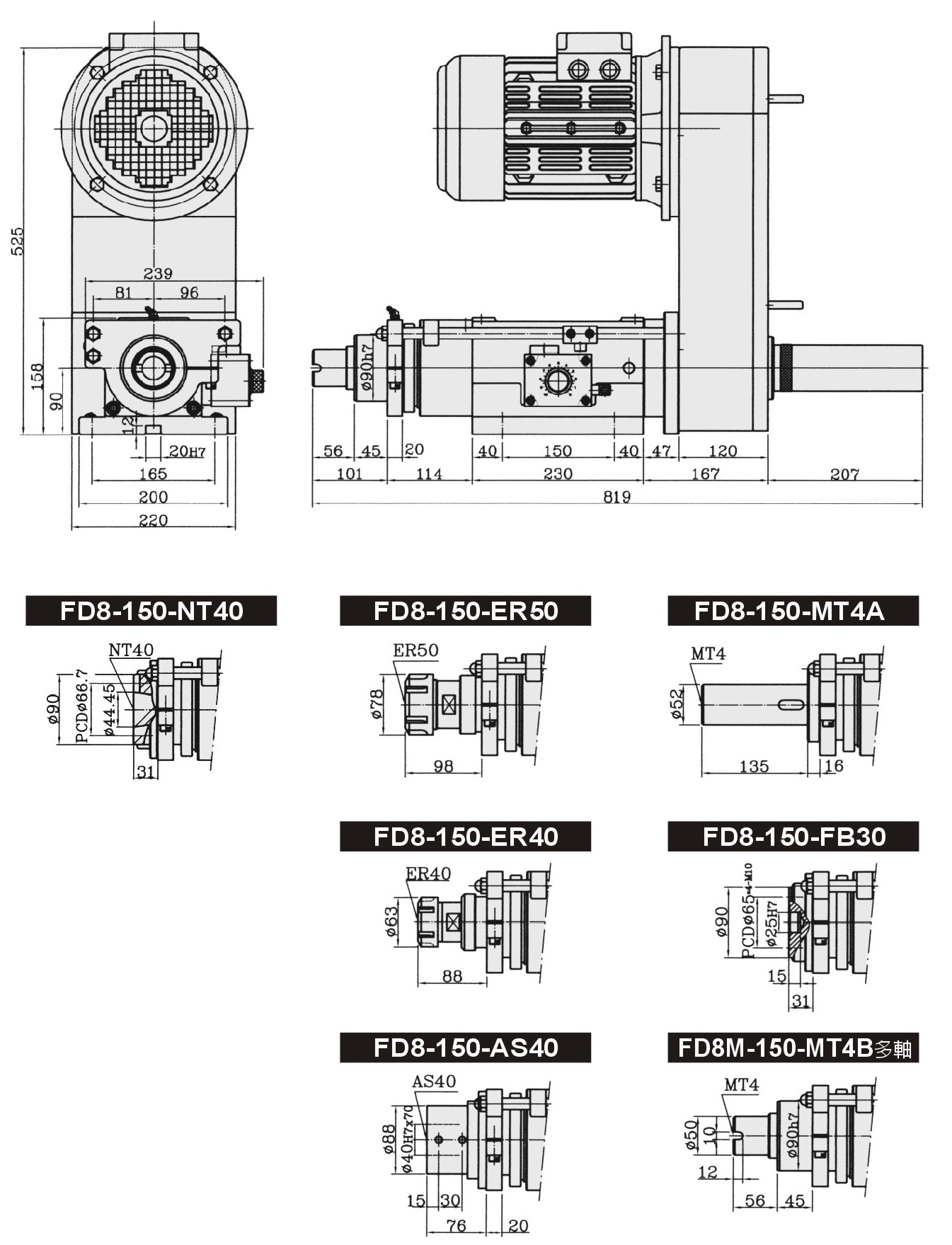

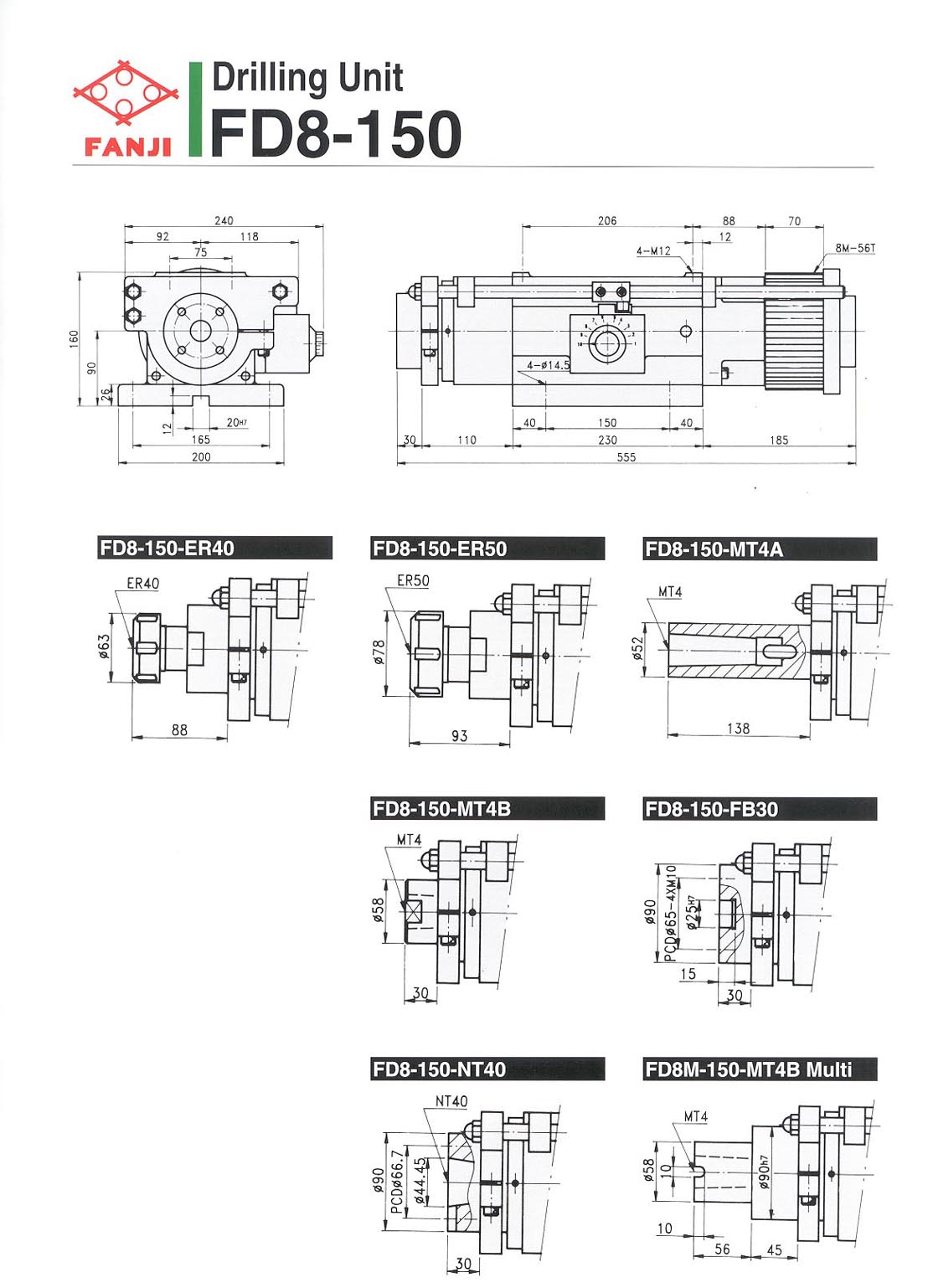

Model FD8-150

  • Hydraulic Pressure: 350 psi
  • Max. Revolution/Minute: 1500 rpm
  • Weight: 140#
  • Overall Stroke: 150mm
  • Cylinder Diameter: Ø 110mm
  • Cylinder Area: Forward 71.2cm2 , Backward 44.8cm2
  • Thrust Force: 3800# / 2400#

To view this file, download it to your computer and open it with AutoCAD compatible software.

FD8-150-ER40L

FD8-150-ER40R

FD8-150-ER50L

FD8-150-ER50R

FD8-150-FB30L

FD8-150-FB30R

FD8-150-MT4AL

FD8-150-MT4AR
